Motorcycle Carburettors

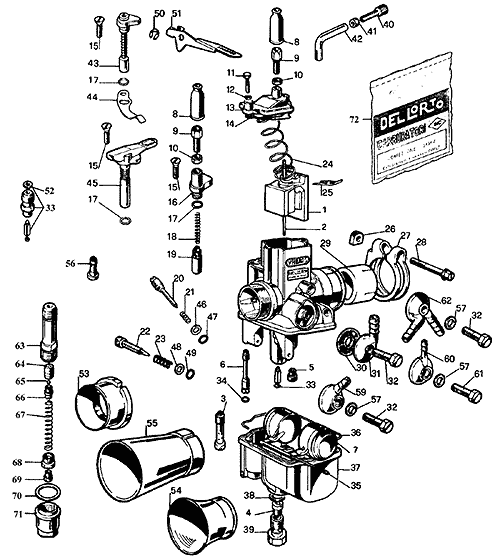

VHB Parts List
| No. | Parts No. | Description | No. | Parts No. | Description |
| 1 | 7447 | Slide 20 - 26mm | 30 | 6109 | Fuel filter |
| 1 | 7454 | Slide 27 - 30mm | 31 | 9250 | Fuel banjo |
| 2 | 2343 | Needle 20 - 26mm | 32 | 4568 | Banjo bolt |
| 2 | 7455 | Needle 27 - 30mm | 33 | 4559 | Needle valve |
| 3 | 8203 | Atomizer U 20 - 26mm | 33 | 9436 | Needle valve assembly |
| 3 | 8299 | Atomizer V 20 - 26mm | 34 | 6173 | O ring |
| 3 | 8358 | Atomizer K 20 - 26mm | 35 | 7346 | Float pivot pin |
| 3 | 8566 | Atomizer D 20 - 26mm | 36 | 7451 | Float bowl O ring |
| 3 | 7456 | Atomizer M 27 - 30mm | 37 | 7335 | Float bowl |
| 3 | 7755 | Atomizer N 27 - 30mm | 38 | 6266 | Float bowl seal |
| 3 | 7790 | Atomizer P 27 - 30mm | 39 | 6267 | float bowl nut |
| 3 | 7972 | Atomizer T 27 - 30mm | 40 | 1481 | Cable adjuster |
| 3 | 7878 | Atomizer 29-30mm CS/CD | 41 | 1692 | Adjuster locknut |
| 4 | 6413 | Main Jet | 42 | 3698 | 90 Degree cable elbow |
| 5 | 1486 | Idle jet (short) | 42 | 3600 | 70 Degree cable elbow |
| 6 | 7746 | Choke jet | 42 | 9330 | 40 Degree cable elbow |
| 7 | 7450 | Float Assembly | 42 | 10854 | 50 Degree cable elbow |
| 8 | 1476 | Rubber cable cap | 43 | 8730 | Pull-up choke assembly |
| 9 | 1104 | Cable adjuster | 44 | 9328 | Choke locking spring |
| 10 | 1691 | Adjuster locknut | 45 | 8294 | Lever choke assembly 20-26mm |
| 11 | 3978 | Top cover screw, Hex. Head | 45 | 8293 | Lever choke assembly 27-30mm |
| 11 | 3318 | Top cover screw | 46 | 8260 | Mixture screw washer |
| 12 | 5011 | Spring washer | 47 | 8678 | Mixture screw O ring |
| 13 | 7336 | Top cover 20 - 26mm | 48 | 4650 | Stop screw Washer |
| 13 | 7338 | Top cover 27 - 30mm | 49 | 7540 | Stop screw O ring |
| 14 | 8210 | Top cover gasket 20 - 26mm | 50 | 5495 | Circlip |
| 14 | 8208 | Top cover gasket 27 - 30mm | 51 | 9327 | Choke operating lever |
| 15 | 7745 | Choke support screw | 52 | 6288 | Needle valve seal, VHBZ/T |
| 16 | 8295 | Choke support | 53 | 4224 | Trumpet, 20mm |
| 17 | 8297 | Choke support O ring | 54 | 1439 | Trumpet, 30mm |
| 18 | 3133 | Choke return spring | 55 | 3100 | Trumpet |
| 19 | 3238 | Choke piston | 56 | 7878 | Atomizer, VHB CS/CD |
| 20 | 7449 | Mixture screw | 57 | 4052 | Banjo bolt seal |
| 21 | 7446 | Mixture screw spring | 59 | 6517 | Fuel banjo |
| 22 | 7673 | Slide stop screw | 60 | 8752 | Fuel banjo, 6mm |
| 23 | 4670 | Slide stop spring | 61 | 4053 | Banjo bolt |
| 24 | 7448 | Slide spring | 62 | 7890 | Double fuel banjo |
| 24 | 7941 | Slide spring | 63 | 7879 | Pump body |
| 24 | 8750 | Slide spring | 64 | 7831 | Pump piston |
| 25 | 1407 | Needle clip | 65 | 7185 | Pump ball bearing |
| 26 | 8128 | Clamp nut | 66 | 7832 | Holder |
| 27 | 8131 | Manifold clamp 20 - 26mm | 67 | 7882 | Spring |
| 27 | 8142 | Manifold clamp 27 - 30mm | 68 | 7828 | Main jet holder |
| 28 | 8127 | Clamp bolt | 69 | 1486 | Main jet (See item 5 for sizes) |
| 29 | 6976 | Manifold sleeve 20 - 26mm | 70 | 4057 | Float bowl seal |
| 29 | 6977 | Manifold sleeve 20 - 26mm | 71 | 7880 | Float bowl nut |
| 29 | 7569 | Manifold sleeve 20 - 26mm | 72 | 52510 | Gasket set VHB/T29-30C |
| 29 | 8792 | Manifold sleeve 20 - 26mm | 72 | 52511 | Gasket set VHB Linked |
| 29 | 7453 | Manifold sleeve 27 - 30mm | 72 | 52512 | Gasket set VHB/Z 20-26mm |
| 29 | 8434 | Manifold sleeve 27 - 30mm | 72 | 52517 | Gasket set VHB/T 27-30mm |
