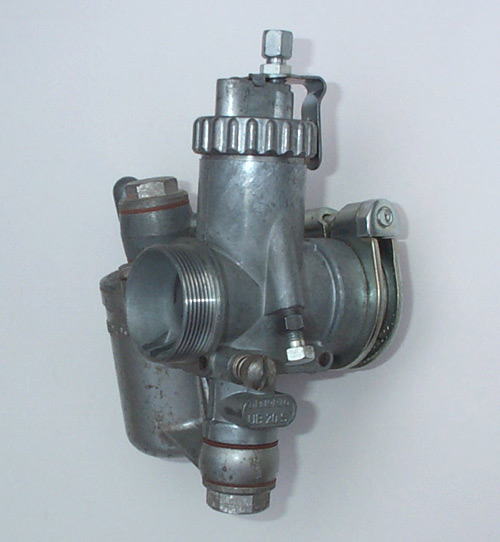

Motorcycle Carburettors

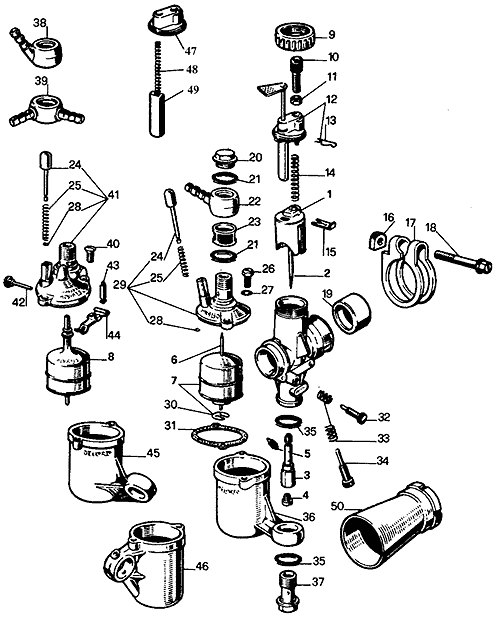

UB Parts List
| No. | Parts No. | Description |
| 1 | 4361 | Slide |
| 2 | 2343 | Needle |
| 3 | 2058 | Atomizer |
| 4 | 1486 | Main jet |
| 5 | 1488 | Idle jet |
| 6 | 1607 | Float needle |
| 7 | 1423 | Float |
| 7 | 2390 | Float |
| 8 | 3076 | Float |
| 9 | 2324 | Top ring |
| 10 | 1104 | Cable adjuster |
| 11 | 1691 | Adjuster locknut |
| 12 | 2330 | Carb. Top with choke lever |
| 13 | 3570 | Choke spring clip |
| 14 | 2372 | Slide spring |
| 15 | 1407 | Needle clip |
| 16 | Clamp nut | |
| 17 | Manifold clamp | |
| 18 | Clamp bolt | |
| 19 | 6975 | Manifold sleeve |
| 19 | 6976 | Manifold sleeve |
| 20 | 1494 | Banjo bolt |
| 21 | 1416 | Banjo bolt seal |
| 22 | 2706 | Fuel banjo |
| 23 | 1419 | Fuel filter |
| 24 | 1492 | Float tickler |
| 25 | 1410 | Float tickler spring |
| 26 | 1491 | Float chamber screw |
| 27 | 5010 | Spring washer |
| 28 | 1493 | Circlip |
| 29 | 1584 | Float chamber top |
| 30 | 1452 | Float needle clip |
| 31 | 1414 | Float bowl gasket |
| 32 | 2115 | Mixture screw |
| 33 | 1411 | Mixture/stop screw spring |
| 34 | 1095 | Slide stop screw |
| 35 | 1382 | Fibre seal |
| 36 | 2200 | Float bowl |
| 37 | 2086 | Float chamber bolt |
| 38 | 3072 | Single banjo, 45 degree |
| 39 | 3581 | Double banjo |
| 40 | 1580 | Float chamber screw |
| 41 | 3670 | Float chamber top |
| 42 | 2835 | Float pivot pin |
| 43 | 2838 | Needle valve |
| 44 | 3073 | Float arm |
| 45 | 4225 | Float bowl, 20 degree |
| 45 | 4889 | Float bowl, 34 degree |
| 45 | 2087 | Float bowl, 50 degree |
| 46 | 2063 | Float bowl, 90 degree |
| 47 | 2329 | Carb. Top |
| 48 | 1093 | Choke spring |
| 49 | 2325 | Choke slide |
| 50 | 2993 | Trumpet 55mm |
| 50 | 3339 | Trumpet 41mm |
| 51 | 1096 | Stop screw locknut |
