Motorcycle Carburettors

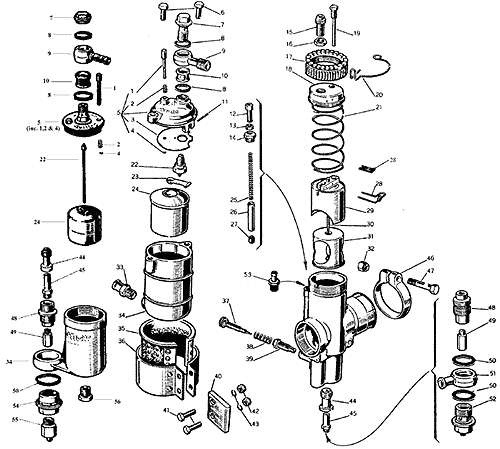

SS1 Parts List

No.	Parts No.	Description	No.	Parts No.	Description
1	1857	Float tickler	28	1407	Needle clip
1	6534	Float tickler	29	3466	Slide
2	1288	Tickler spring	29	3686	Slide
3	1902	Anti surge plate	29	2384	Slide
4	1493	Tickler circlip	30	1141	Needle, N
5	2478	Chamber top assy	30	1900	Needle, P
5	2053	Chamber top assy	30	1824	Needle, M
6	1861	Bolt	31	5231	Diffuser
7	1955	Banjo bolt	31	5213	Diffuser
7	1494	Banjo bolt	31	2412	Diffuser
8	1416	Banjo seal	32	1751	Clamp nut
9	1991	Fuel banjo	33	1852	Fuel outlet
9	1564	Fuel banjo	34	1775	Float bowl
10	1419	Fuel filter	34	1737	Float bowl
11	1903	Pivot pin	35	1864	Float bowl support
12	1104	Cable adjuster	36	1872	Float bowl clamp
13	1691	Locknut	37	1753	Mixture screw
14	1127	Choke support	37	1101	Mixture screw
15	1122	Cable adjuster	38	1116	Mixture screw spring
16	1123	Locknut	39	1752	mixture screw holder
17	3469	Top ring	40	1934	Support plate
17	3498	Top ring	41	1862	Clamp bolt
17	6784	Top ring	42	4698	Clamp nut
18	3468	Carb. Top	43	1948	Spring washer
18	3497	Carb. Top	44	1128	Atomizer holder
18	6783	Carb. Top	44	1795	Atomizer holder
19	3504	Slide stop screw	45	1121	Atomizer
19	2388	Slide stop screw	46	1805	Atomizer
19a	1576	Locknut	46	1748	Manifold clamp
20	3592	Locking clip	46	1749	Manifold clamp
20	1740	Locking clip	46	1796	Manifold clamp
21	3465	Slide spring	47	1750	Clamp bolt
21	3500	Slide spring	47	4269	clamp bolt
21	6785	Slide spring	48	1125	Main jet holder
22	1949	Needle valve	48	2386	Main jet holder
22	1205	Needle valve	49	1126	main jet
23	1901	Actuator arm	50	1972	Banjo seal
24	1893	Float	50	1161	Banjo seal
24	1156	Float	51	1853	Fuel banjo
25	1093	Choke spring	52	1953	Banjo bolt
25	1745	Choke spring	53	5654	Choke plug
26	1120	Choke piston	54	2387	Bottom nut
27	1747	Cable nipple	55	1801	Bottom nut
28	1742	Needle clip	56	1193	Nut
