Motorcycle Carburettors

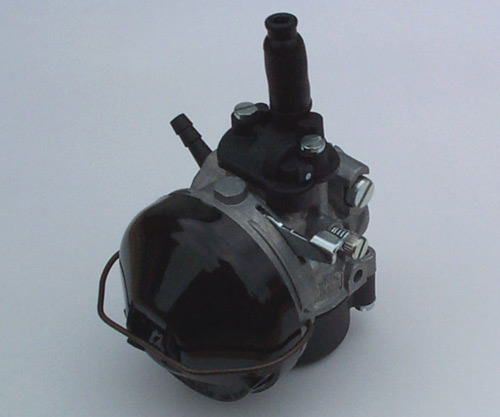

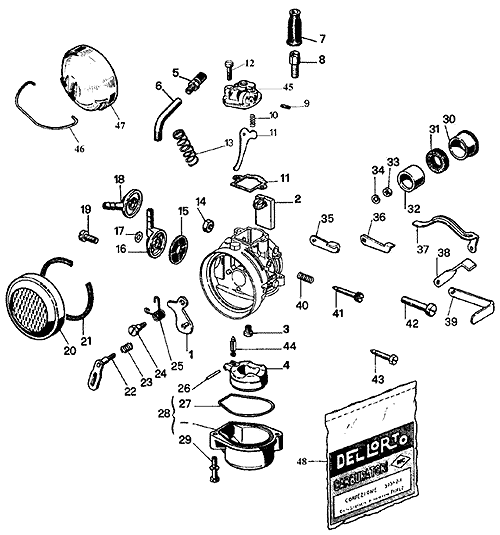

SHA Parts List

No. Parts No. Description No. Parts No. Description
1 9253 Choke flap 24 5417 Shouldered screw
2 6108 Slide 25 7179 Choke spring
3 1486 Main jet 26 8773 Float pivot pin
4 6122 Float 27 6123 Float bowl O ring
5 1481/1692 Cable adjuster/locknut 28 15447 Float bowl
6 3698 90 Degree cable elbow 29 11837 Screw
6 3600 70 Degree cable elbow 30 11362 Manifold sleeve
6 9330 40 Degree cable elbow 31 * Seal
6 10854 50 Degree cable elbow 32 6448 Manifold sleeve
7 1476 Rubber cable cap 33 8000 Choke spindle nut
8 1104 Cable adjuster 34 1581 Spring washer
9 6115 Top cover pin 35 9257 Choke lever
10 6259 Choke lever spring 36 10162 Choke lever
11 6112 Choke lever 37 11119 Choke lever
12 3318 Top cover screw 38 12394 Choke lever
13 3346 Slide return spring 39 13004 Choke lever
14 7427 Nut 40 3606 Mixture screw spring
15 6109 Fuel filter 41 6140 Mixture screw
16 6475 Fuel banjo 42 6305 Screw
17 3385 Banjo bolt seal 43 7578 Mixture screw
18 9249 Fuel banjo 44 2838 Needle valve
19 4190 Banjo bolt 44 11668 Needle valve
20 6117 Air filter element 45 6110 Carburettor top
21 6159 Air filter seal 46 6235 Cover clip
22 9256 Choke spindle 47 6183 Filter cover
23 9259 Choke spindle spring 48 52579 Gasket set
