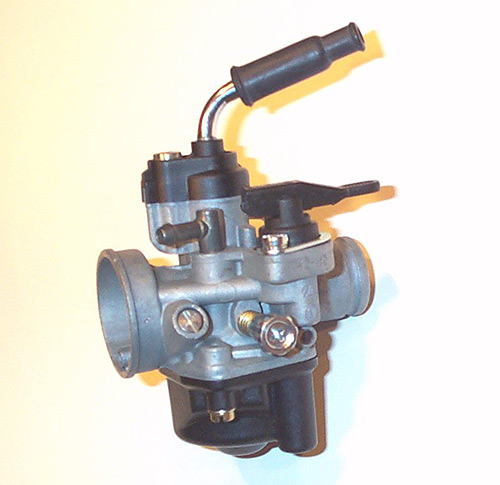

Motorcycle Carburettors

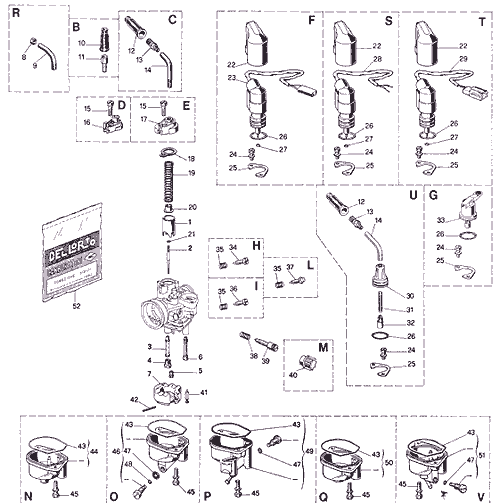

PHVA Parts List
| No. | Parts No. | Description |
| 1 | 14230 | Slide |
| 1 | 14730 | Slide for 17.5mm carb. |
| 2 | 13680/16250 | Needle |
| 3 | 13690 | Atomizer FA |
| 3 | 14225 | Atomizer FP |
| 3 | 14351 | Atomizer FQ |
| 3 | 14671 | Atomizer GA |
| 4 | 6413 | Main Jet |
| 5 | 11600 | Idle jet |
| 6 | 13815 | Choke jet |
| 7 | 13700 | Float |
| 8 | 1691 | locknut |
| 9 | 14693 | Elbow |
| 10 | 1476 | Rubber cable cap |
| 11 | 1104 | Adjuster |
| 12 | 14050 | Long rubber cale cap |
| 13 | 1481/1692 | Elbow cable adjuster |
| 14 | 3600 | Cable elbow 70 degree |
| 14 | 3698 | Cable elbow 90 degree |
| 15 | 7526 | Top cover screw |
| 16 | 13683 | Top cover |
| 17 | 14308 | Top cover |
| 18 | u | Top cover gasket |
| 19 | 13686 | Slide spring |
| 20 | 13687 | Needle retainer |
| 21 | 13681 | Needle clip |
| 22 | 13788 | Automatic choke cover |
| 23 | 13780 | Automatic choke unit |
| 24 | 13060 | Choke bracket screw |
| 25 | 13693 | Choke bracket |
| 26 | u | O ring |
| 27 | u | O ring |
| 28 | 14493 | Automatic choke assembly |
| 29 | 15033 | Automatic choke assembly |
| 30 | 14560 | Manual choke cover |
| 31 | 4044 | Manual choke spring |
| 32 | 14574 | Choke piston |
| U | 53009 | Cable choke assembly inc. 12,13,14,30,31,32,26,24 & 25 |
| 33 | 14165 | Lever choke |
| 34 | 14130 | Air screw |
| 35 | 1411 | Air screw spring |
| 36 | 14055 | Air screw |
| 37 | 13691 | Air screw |
| 38 | 4670 | Throttle stop screw spring |
| 39 | 13688 | Throttle stop screw |
| 40 | 12144 | Throttle stop screw cap |
| 41 | 11668/14290 | Needle valve |
| 42 | 13679 | Float pin |
| 43 | u | Float bowl o ring |
| 44 | 14181 | Float bowl |
| 45 | 13709 | Float bowl screw |
| 46 | 14182 | Float bowl |
| 47 | u | Seal |
| 48 | u | O ring |
| 49 | 14363 | Float bowl |
| 50 | 13678 | Float bowl |
| 51 | 14699 | Float bowl |
| 52 | 52622 | Gasket set |
| u | Included in gasket set |
