Motorcycle Carburettors

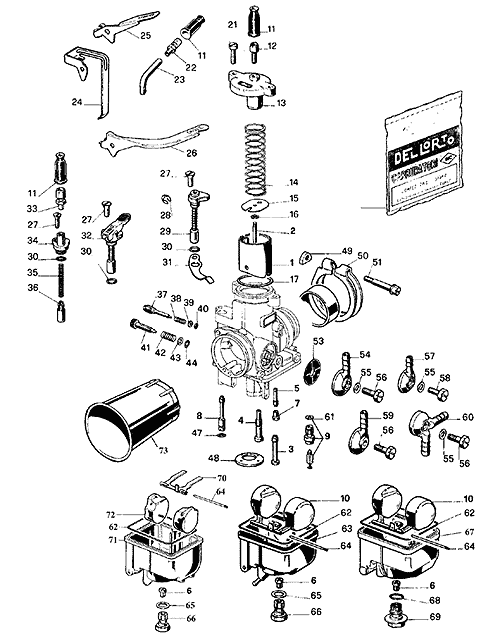

PHBH/L Parts List

No.	Parts No.	Description	No.	Parts No.	Description
1	9645	PHBL Slide	36	3238	Choke piston
1	9374	PHBH Slide	37	7449	Mixture screw
2	2265	PHBL Needle	38	7446	Mixture screw spring
2	9477	PHBH Needle	39	8260	Mixture screw? washer
3	8358	Atomizer K PHBL	40	8678	Mixture screw O ring
3	8566	Atomizer D PHBL	41	7673	Slide stop screw
3	7456	Atomizer M PHBH	41	10257	Slide stop screw
3	7790	Atomizer P PHBH	42	4670	Stop screw spring
3	7972	Atomizer T PHBH	42	2638	Stop screw spring
3	10575	Atomizer CE PHBH	43	4650	Stop screw washer
4	9423	Atomizer AS PHBH	44	7540	Stop screw O ring
4	9695	Atomizer AV PHBH	46	10001	Short trumpet PHBH
4	10174	Atomizer BN PHBH	47	6173	Starter jet O ring
4	10654	Atomizer CF PHBH	48	9996	Anti-surge washer
5	10532	Idle Emulsion tube PHBL	49	8128	Clamp nut
5	9980	Idle Emulsion tube PHBH	50	8142	Manifold clamp PHBH
6	6413	Main Jet	50	8131	Manifold clamp PHBL
7	1486	Idle jet	51	8127	Clamp bolt
8	7747	Starter jet PHBL	52	7453	Manifold sleeve PHBH
8	7746	Starter jet PHBH	52	6976	Manifold sleeve PHBL
9	9436	Needle valve	52	6977	Manifold sleeve PHBL
9	8649	Needle valve PHBH	52	7569	Manifold sleeve PHBL
10	9010	Float Assembly	52	8792	Manifold sleeve PHBL
11	1476	Rubber cable cap	53	6109	Fuel filter
12	1104	Cable adjuster	54	6273	Fuel banjo (metal)
13	9561	Carb. Top PHBL	55	4052	Banjo bolt seal
13	9372	Carb. Top PHBH	56	4568	Banjo bolt
14	9644	Slide spring PHBL	57	8752	Fuel banjo
14	8550	Slide Spring PHBH	58	4053	Banjo bolt
15	9563	Needle plate PHBL	59	9250	Fuel banjo (plastic)
15	9375	Needle plate PHBH	60	7890	Double fuel banjo
16	9596	Needle circlip	61	6288	Needle valve seal
17	6013	Carb top O ring PHBL	62	9424	Float bowl O ring
17	9476	Carb. Top O ring PHBH	63	12143	Float bowl? + breather
21	8542	Top cover screw	64	7346	Float pivot pin
22	1482/1692	Adjuster + locknut	65	6266	Float bowl seal
23	3698	90 Degree cable elbow	66	6267	Float bowl nut
23	3600	70 Degree cable elbow	67	11770	Float bowl
23	9330	40 Degree cable elbow	68	*	Seal for 11771
23	10854	50 Degree cable elbow	69	11771	Float bowl nut
24	9896	Choke lever	70	13154	Float arm
25	9327	Choke lever	71	13590	Float bowl
26	11985	Choke lever	72	9794	Single float
27	7745	Choke support screw	73	9543	55mm trumpet PHBH
28	5495	Choke circlip	73	9560	50mm trumpet PHBL
29	8730	Pull-up choke assembly	74	52524	Gasket set PHBL
30	8297	Choke support O ring	74	52552	Gasket set PHBL C
31	9704	Choke locking spring	74	52599	Gasket set PHBL D, S
32	8294	Lever choke assembly	74	52523	Gasket set PHBH
33	1104/1691	Cable adjuster/locknut	74	52581	Gasket set PHBH F
34	8295	Choke support	74	52598	Gasket set PHBH Q
35	3133	Choke return spring
