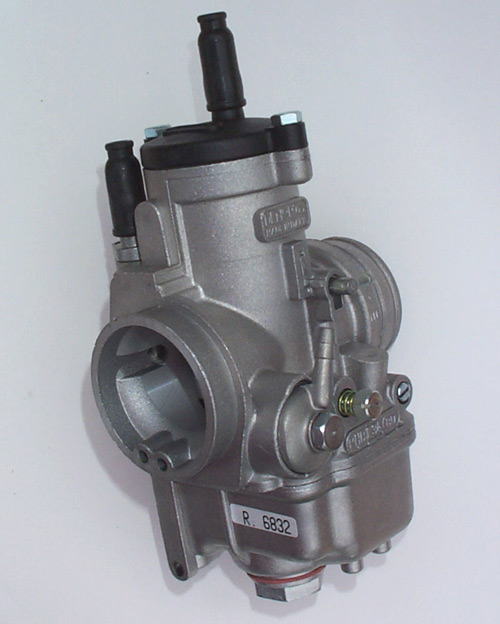

Motorcycle Carburettors

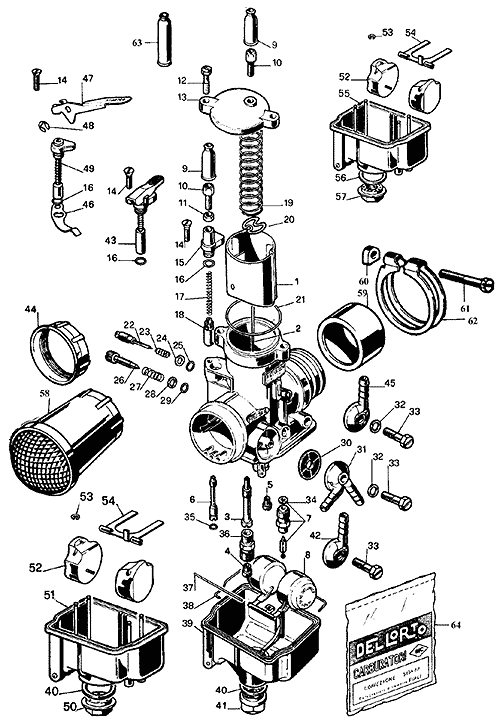

PHBE Parts List

No. Parts No. Description No. Parts No. Description
1 9309 Slide 29 7540 Stop screw O ring
2 8530 Needle 30 6109 Fuel filter
2 8978 Needle 31 7890 Double banjo
2 9713 Needle 32 4052 Fibre seal
3 8540 Atomizer AB 33 4568 Banjo bolt
3 9593 Atomizer AR 34 6288 Fibre seal
3 9695 Atomizer AV 35 6173 O ring
3 10174 Atomizer BN 36 8885 Main Jet holder
3 10654 Atomizer CF 36 8886 Main Jet holder
3 8979 Atomizer AF 37 7346 Float pin
3 9423 Atomizer AS 38 7451 Float bowl O ring
4 6413 Main Jet 39 7881 Float bowl
5 1486 Idle jet (short) 40 4057 Float bowl nut seal
6 7746 Choke jet 41 8886 Float bowl nut
7 10375 Float needle valve 42 9250 Single banjo, plastic
7 8649 Float needle valve 43 8293 Manual choke assy
7 8982 Float needle valve 44 8680 Short trumpet
8 7450 Float 45 6273 Single banjo, metal
9 1476 Rubber cable cap 46 9704 Choke locking spring
10 1104 Cable adjuster 47 9327 Choke lever
11 1691 Adjuster locknut 48 5495 Circlip
12 8542 Screw 49 8730 Lift up choke assy.
13 11045 Carb. Top (Plastic) 50 9676 Float bowl nut
14 7745 Choke support screw 51 9791 Float bowl
15 8295 Choke support 52 9794 single float
16 8297 choke support O ring 53 3704 Circlip
17 3133 Choke return spring 54 9796 Float arm
18 3238 Choke piston 55 10237 Float bowl
19 8550 Slide spring 0.7kg/70mm 56 2778 Float bowl seal
19 8532 Slide spring 1.1kg/70mm 57 10238 Float bowl nut
19 9389 Slide spring 1.4kg/70mm 58 8670 60mm Trumpet with gauze
20 8525 Needle circlip 59 8595 Manifold sleeve
21 8533 Top O ring 59 9432 Manifold sleeve
22 7449 Mixture screw 60 8128 Clamp nut
23 7446 Mixture screw spring 61 8127 Clamp bolt
24 8260 Washer 62 8527 Manifold clamp
25 8678 Mixture screw O ring 63 8222 Rubber cable cap, long
26 7673 Thottle stop screw 64 52519 Gasket set
26 4670 Thottle stop screw 64 52546 Gasket set C H L R P T U
27 4670 Stop screw spring Manual ?DellortoTuning manual
28 4650 Stop screw washer
