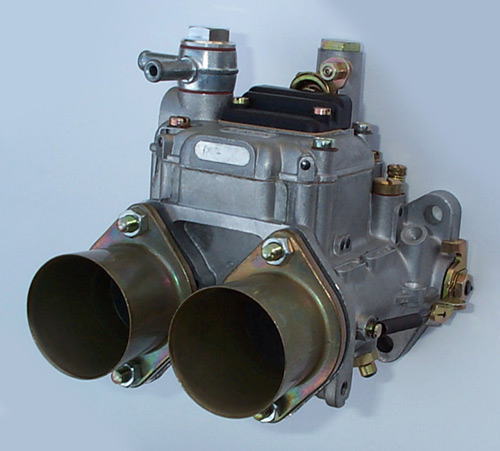

Car Carburettors

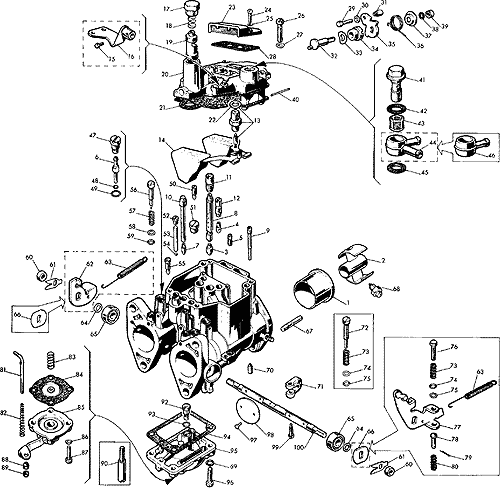

DHLB Parts List

No. Parts No. Description No. Parts No. Description
1 8076 DHLB35 Choke 50 8176 By pass Screw
2 7956 Aux. Venturi 51 7508 Progression blanking screw
3 7484 Main Jet 52 7513 Cap screw
110-190 in 1`s 53 7525 Pump jet weight
4 4576 Idle jet 54 6415 Pump jet ball bearing
5 7529 Power jet 55 7959 Vacuum blanking screw
56 8214 Mixture screw
6 8083 Pump jet 57 4670 Mixture screw spring
7 4576 Starter jet 58 4650 Mixture screw washer
8 7772 Main emulsion tube 59 7540 Mixture screw O ring
9 7536 Power jet atomiser 60 6423 Spindle nut
10 7482 Starter emulsion tube 61 6851 Spindle nut lock washer
11 7485 Air corrector 62 8067 Lever
62 8067 Lever
12 7932 Idle holder/emulsion tube 63 7504 Return Sring
13 8809 Needle valve, viton tipped 64 7537 Spindle washer
8811 Needle valve, metal tipped 65 7490 Spindle bearing
14 7298 Float assy 66 7958 Spindle end cover
15 6434 Choke outer cable clamp screw 67 7151 Trumpet stud
16 7926 Choke cable support 68 8206 Aux. vent. fixing screw
17 7501 Choke piston cover bolt 69 4997 Spring washer
18 7413 Choke piston spring 70 8489 Choke retaining screw
19 7548 Choke piston 71 7861 Pump rod spindle clamp
20 8063 Top cover casting 72 7928 Mixture screw
21 7924 Top cover casting gasket 73 4670 Mixture screw spring
22 6425 Needle valve washer 74 4650 Mixture screw washer
23 8275 Vent cover 75 7540 Mixture screw O ring
24 7530 Vent cover screw 76 6898 Throttle stop screw
25 5011 Vent cover Spring washer 77 8069 Lever
26 6430 Top cover screw 78 7496 Balance lever pin
27 4997 Top cover spring washer 79 3793 Split pin (balance lever)
28 8047 Vent cover gasket 80 2638 Balance lever spring
29 7062 Choke inner cable clamp 81 7927 Pump rod
30 6850 Cable clamp washer 82 6403 Pump rod Spring
31 6432 Choke cable clamp nut 83 6391 Pump diaphragm spring
32 7498 Choke actuator cam 84 8073 Pump diaphragm
33 7837 Actuator cam spring washer 85 8066 Pump cover assembly
34 7853 Actuator cam? retaining bush 86 5011 Spring washer
35 7341 Choke actuator lever 87 6429 Pump cover Screw
36 7854 Choke cable return spring 88 6782 Pump rod nut
37 7838 Choke spring cup washer 89 6390 Pump rod lock nut
38 4957 Spring washer 90 8221 Pump cover screw (long)
39 2906 Choke spring retaining nut 92 7542 Pump non return valve
40 7503 Float assy pivot pin 93 7540 O ring
41 7659 Banjo bolt 94 7931 Pump housing gasket
42 7662 Banjo fibre washer, outer 95 8065 Pump housing
43 1419 Banjo fuel filter 96 7526 Spring washer
44 8072 Fuel banjo, double 90 degree 97 6416 Butterfly screw
8490 Fuel Banjo, return 98 7667 Butterfly
45 7663 Banjo fibre washer, inner 99 7667 Pump clamp screw
46 8071 Fuel banjo, single 90 degree 100 7920 Butterfly Spindle
47 7852 Pump jet holder 52507 Gasket set (1 Carb)
48 6173 Pump jet O ring 8075 Standard trumpet (34mm)
49 6426 Pump jet cap fibre washer
