Car Carburettors

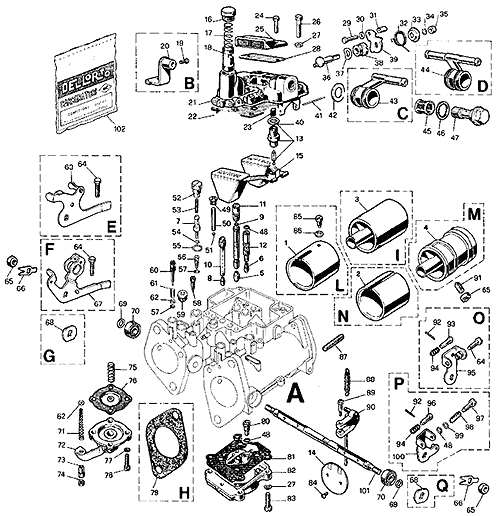

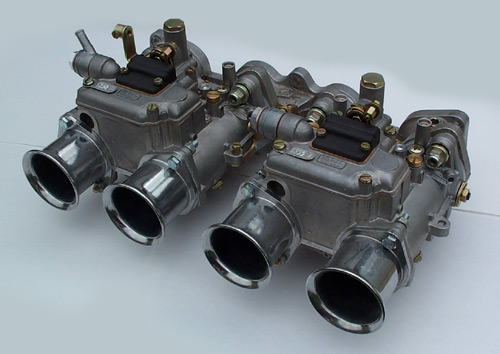

DHLA Parts List


No. Parts No. Description No. Parts No. Description
1 8564 DHLA 48 choke 48 7540 O ring
2 7956 DHLA 45/48 choke 49 7513 Cap screw
2 8383 DHLA 40 choke 50 7525 Pump jet weight
3 8011 DHLA 45/48 Aux. Venturi 51 6415 Pump jet ball bearing
4 7848 DHLA 40 Aux. Venturi 52 10747 Pump jet holder
5 7484 Main Jet 53 10748 Pump jet filter/spring
5 110-190 in 1`s 54 6173 Pump jet O ring
6 7644 Idle jet 55 6426 Pump jet cap fibre washer
7 7851 Pump jet 56 9926 Air bleed screw
7 57 8678 Air bleed screw O ring
8 3315 Starter jet 58 7959 Vacuum blanking screw
9 7772 Main emulsion tube 59 8857 G/H prog. blanking screw
10 7482 Starter emulsion tube 60 9656 Mixture screw 48/45/40H
11 7485 Air corrector 61 9336 Mixture screw spring
11 62 8260 Mixture screw washer
12 7850 Idle holder/emulsion tube 63 10381 DHLA late alfa lever
13 8809 Needle valve, viton tipped 64 9754 DHLA throttle stop screw
13 8811 Needle valve, metal tipped 65 6423 Spindle nut
12538 Needle valve, viton tipped 66 6581 Spindle nut lock washer
14 7481 Throttle butterfly DHLA 40 67 10714 Short Lotus lever
14 8010 Throttle butterfly DHLA 45 68 7958 Spindle end cover
14 8563 Throttle butterfly DHLA 48 69 7537 Spindle washer
15 7298 Float assy 70 7490 Spindle bearing
16 7501 Choke piston cover bolt 71 7627 Pump rod spring
17 7413 Choke piston spring 72 8058 40/45/48 E Pump Cover assy
18 9609 Choke piston 73 7625 Pump rod nut
19 6434 Choke outer cable clamp screw 74 6390 Pump rod lock nut
20 7488 Choke cable support 75 7626 Diaphagm Spring
21 9818 Top cover casting 76 7515 Pump Diaphragm
22 9358 Top cover casting gasket 77 5011 Spring washer (pump cover)
22 9220 Top cover casting gasket (antisurge) 78 6429 Screw (pump cover)
23 9498 Needle valve filter 79 8302 Alfa carb/inlet manifold gasket
24 7530 Vent cover screw 80 7542 Pump non-return valve
25 7549 Vent cover 81 7509 Pump body gasket
26 6430 Top cover screw 82 7550 DHLA45E Pump body
27 4997 Top cover spring washer 83 7526 Pump body screw
28 7511 Vent cover gasket 84 6416 Butterfly screw
29 7062 Choke inner cable clamp 85 6449 DHLA48 choke retaining screw
30 6850 Cable clamp washer 86 4957 Spring washer (choke screw)
31 6432 Choke cable clamp nut 87 7151 Trumpet stud
32 7854 Choke cable return spring 88 7957 Throttle return spring (std)
33 7838 Choke spring cup washer 88 8610 Throttle return spring (competition)
34 4957 Spring washer 89 6887 Cap screw
35 2906 Choke spring retaining nut 90 8307 DHLA40 pump rod assy
36 9610 Choke actuator cam 91 7507 Venturi grub screw
37 7837 Actuator cam spring washer 92 3793 Split pin (balance lever)
38 9611 Actuator cam? retaining bush 93 7496 Balance lever pin
39 7341 Choke actuator lever 93 9752 Balance lever pin
40 6425 Needle valve washer 94 2638 Balance lever spring
41 7503 Float assy pivot pin 95 11529 Late Alfa balance lever
42 7663 Banjo fibre washer, inner 96 7496 Balance lever pin
43 7862 Fuel banjo, single 45 degree 97 6898 Throttle stop screw
43 8071 Fuel banjo, single 90 degree 98 4670 Throttle stop screw spring
43 7660 Fuel banjo, single standard 99 4650 Washer
44 8072 Fuel banjo, double 90 degree 100 8304 Lotus balance lever
44 7661 Fuel banjo, double standard 101 7668 DHLA 40 spindle
45 1419 Banjo fuel filter 101 8352 DHLA 45 spindle
46 7662 Banjo fibre washer, outer 101 8604 DHLA 48 spindle
47 7659 Banjo bolt 102 52528 Gasket set (2 carbs)
